A “bracket adaptor” is not a sufficiently precise RFQ description: Pune suppliers may read it as an actuator mounting bracket, yoke adaptor, stem extension or turned connector. You will be able to set a realistic budget, define the valve-to-actuator interface, compare manufacturing routes and send suppliers the information needed for a usable OEM quotation.
Key takeaways
- Budget ₹1,000–₹4,000 for a simple small-quantity machined adaptor.
- Send interface drawings, material, tolerances and quantity with your RFQ.
- Compare CNC, VMC and multi-axis machining against part complexity.
- Request material certificates, inspection reports and a complete price basis.
What should you budget for a bracket adaptor in Pune?
1. Budget ₹1,000–₹4,000 per piece for a simple CNC-machined carbon-steel or stainless-steel bracket adaptor in a small production quantity. Treat this as an RFQ planning value, not a fixed Pune market quotation. A one-off prototype can exceed it.
2. Budget ₹3,000–₹12,000 per piece for a low-quantity adaptor with multiple milled faces, cross-drilled or deep holes, threads, a keyed or square drive, tight concentricity and traceable inspection. Special stainless grades, heat treatment or deep slender features can push the valve bracket adaptor price above this band.
3. Two parts with similar outside dimensions can receive very different quotations because price follows material grade, stock size, wall thickness, number of setups and machining time. Add deburring, coating or passivation, inspection, material certificates, packaging and tooling; each item can change the total.
4. At several hundred pieces, repeatable CNC production can reduce the machining component, while programming, tooling and first-article inspection remain separate charges. Ask a bracket adaptor price oem supplier in Pune to show each charge rather than quoting one unexplained piece price.
5. Request separate prices for prototype, first batch, annual quantity and blanket-order quantity. Give the supplier the drawing, material grade, tolerances, finish and inspection requirements, then ask for line items covering machining, certificates, treatment, inspection, packaging and freight. This makes competing quotes comparable.
Which valve interface part are you actually asking a supplier to make?

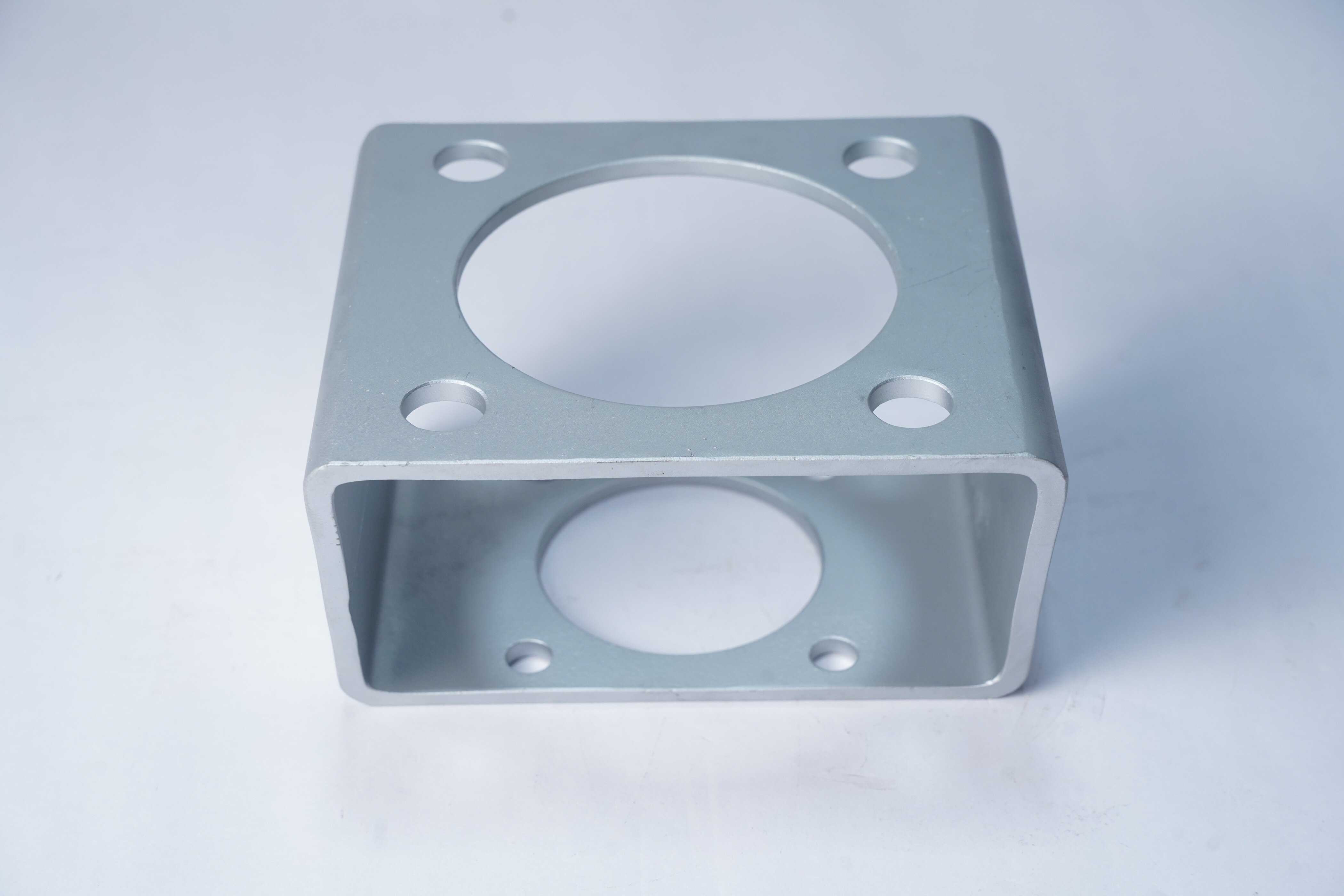

Ask for the exact interface part, not merely a “bracket adaptor.” A valve bracket supports or positions a valve, actuator or pipework; a bracket adaptor changes the interface between two components.
A mounting adaptor provides a bolt-on transition between flange patterns, a support bracket carries load without necessarily transmitting drive torque, and a custom interface plate matches a particular hole pattern or equipment envelope.
| Part | Primary function | Typical OEM use |
|---|---|---|
| Valve bracket | Supports or positions equipment | Maintains actuator height or clears nearby pipework |
| Bracket adaptor | Changes a component interface | Connects an actuator to a valve |
| Mounting adaptor | Transitions between bolt patterns | Joins incompatible valve and actuator flanges |
| Support bracket | Carries structural load | Supports a sensor, actuator or attached pipework |
| Custom interface plate | Matches a specific envelope or hole pattern | Preserves access around adjacent equipment |
For quarter-turn automation, give a bracket adaptor supplier in Pune the valve-to-actuator interface using ISO 5211 flange and drive dimensions, not DN or NPS alone. ISO 5211 does not define the complete bracket, stem length, clearance or support arrangement.
Your drawing must identify the valve side, actuator side, centre height, stem geometry, drive type, bolt pattern, orientation and load path. State whether the part must preserve stem engagement and transmit torque; otherwise a supplier may price a yoke adaptor when you need a machined torque-transmitting connector.
How should you define bracket adaptor size, material and fit?
Nominal valve DN or NPS is not a bracket size: two DN50 valves can have different flange patterns, stem geometry and actuator interfaces. Define the part from both mating drawings, or a flange fit can still leave no torque transmission or create actuator side load.
For bracket adaptor sizes in Pune, put these interface and envelope values on the RFQ:
- Valve DN/NPS, valve flange dimensions, actuator interface standard such as ISO 5211, flange outside dimensions, bolt-hole quantity, bolt diameter, pitch-circle diameter and centre-to-centre distances.
- Drive-square or key dimensions, stem or bore diameter, permitted stem-to-bore clearance, engagement length, bracket height, overall envelope and required thickness.
- Datum references, orientation, rotational position, fastener access and clearances around the actuator, stem and adjacent pipework.
Control functional dimensions separately from general ISO 2768 tolerances. Hole position, drive fit, flange parallelism, axis alignment and concentricity determine whether the actuator operates without side load.
| Material | Suitable use | Check before selection |
|---|---|---|
| Carbon or alloy steel | General supports and robust load paths | Protect against corrosion |
| 304 stainless steel | Routine corrosion resistance | Confirm the medium and washdown exposure |
| 316 stainless steel | Stated medium or washdown conditions demand higher corrosion resistance | Verify the actual chemical and chloride service |
| Aluminium | Low-mass assemblies | Check stiffness, threads and galvanic contact |
| Engineering plastics | Low-load, temperature-controlled applications | Confirm creep, temperature and chemical compatibility |
Record temperature, pressure-related loads, corrosion exposure, weight limits and galvanic contact with mating metals before choosing; these inputs also explain a higher valve bracket adaptor price.
Which manufacturing route and Pune supplier fit the part?
Choose the route from the part’s load path and geometry, not from the lowest initial quotation. This comparison shows which Pune supplier is suitable for the drawing.

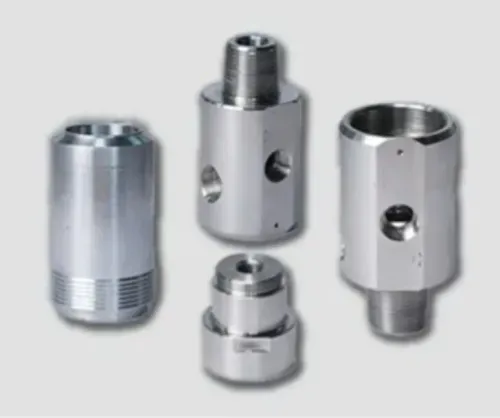

| Route | Best fit | Cost and risk point |
|---|---|---|
| CNC turning | Round, concentric connectors, stems and bores | Efficient for rotational features; slender parts need support and cutoff control |
| VMC or CNC milling | Plates, pockets, bolt patterns and prismatic brackets | Handles flat interfaces; extra setups increase time and alignment risk |
| Multi-axis machining | Complex faces and several intersecting features | Reduces setups, datum transfers and accumulated error |
| Laser or waterjet | Economical plate blanks | Holes, datums and interfaces usually need subsequent machining |
| Fabrication | Large, thick support structures | Lower cost when welding is acceptable; distortion and post-weld hole location require control |
Use a fully machined part when alignment, torque transmission, concentricity, repeatability or surface finish affects valve performance. Choose fabrication for a non-critical support only after addressing weld distortion, stress relief, finishing and hole location.
Small slender features require a defined unsupported length-to-diameter ratio, datum scheme, concentricity or total-indicator reading, edge breaks, chip evacuation, burr control and cutoff runout. Otherwise the supplier may need secondary turning, milling or straightening.
When comparing an industrial bracket adaptor manufacturer, ask for the proposed route, setup count, secondary operations and first-article plan. Efficient Precision & System Pvt.Ltd belongs on a shortlist when its sliding-head, CNC, VMC or multi-axis process matches the drawing.
Compare inspection evidence and actual process steps, not a generic capability list from a bracket adaptor supplier in Pune.
Related product
 | Industrial Valve Efficient Precision and System Pvt. Ltd. is a leading supplier, exporter and manufacturer of Valve Brackets based in India. View product → |
What must an OEM RFQ and quotation contain?
A comparable OEM quotation starts with controlled documents, not the phrase “bracket adaptor.” Send the valve drawing, actuator or mating-component drawing, assembly drawing, 3D model, prototype quantity, annual quantity, blanket quantity, material grade and condition, surface finish, tolerance table, delivery schedule and inspection plan.
Use this comparison when reviewing a bracket adaptor supplier in pune:
| Quantity stage | Ask for | Why it matters |
|---|---|---|
| Prototype | Piece price, tooling, programming and first-article inspection | Separates development cost from production cost |
| First batch | Piece price, inspection and lead time | Exposes launch risk |
| Annual quantity | Price break and capacity commitment | Tests repeat-production economics |
| Blanket order | Call-off price, validity and delivery terms | Shows the real programme cost |
Specify the actuator make and model, valve interface standard, left or right orientation, fail position, drive geometry, datum scheme, marking and traceability requirements. State burr and sharp-edge limits, acceptance criteria, packaging protection, material certificates, sampling level and inspection method.
Require separate line items for:
- Material
- Machining
- Bought-out fasteners
- Heat treatment
- Coating or passivation
- Inspection
- Tooling and programming
- Packaging and freight
Ask the supplier to define first-article inspection, rejected-part responsibility, replacement terms and lead time. A low piece price can conceal non-recurring engineering, inspection charges or rework risk. For any “bracket adaptor price oem supplier in pune” comparison, approve a drawing-based inspection report covering hole pattern, centre height, drive fit, alignment and functional assembly before release.
Frequently asked questions
What should you budget for a bracket adaptor in Pune?
Use ₹1,000–₹4,000 per piece as an RFQ planning value for a simple CNC-machined carbon-steel or stainless-steel bracket adaptor in a small production quantity. A one-off prototype can cost more because programming, setup and inspection are spread across one part.
Which valve interface details must you give a bracket adaptor supplier?
Provide the valve and mating-component drawings, bolt-hole pattern, hole diameter, thread specification, centre-to-centre distances, datum scheme, mounting orientation and any clearance or sealing requirements. State whether the part supports, spaces, converts or aligns the valve interface.
How should you specify bracket adaptor size, material and fit?
State overall dimensions, thickness, material grade, heat treatment or coating, critical tolerances, surface-finish requirements and the fit at every mating feature. Identify carbon steel or stainless steel by grade, such as EN8 or SS 304, rather than writing only “steel.”
What should an OEM RFQ for a Pune bracket adaptor contain?
Include a revision-controlled 2D drawing, 3D model, annual and order quantity, prototype requirement, material grade, tolerances, finish, inspection plan, delivery location and packaging instructions. Ask each supplier to separate tooling, programming, first-article inspection, machining, finishing and freight charges.
